INFRASTRUCTURE

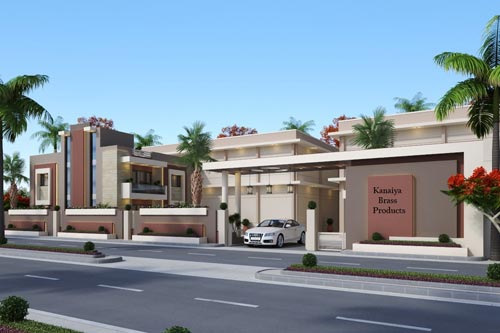

MANUFACTURING UNIT DETAILS

MANUFACTURING UNIT

Sr. No. Description UOM Area
1 FACTORY AREA SQ.FT. 43000
2 THREE FLOOR CONTRUCTION AREA SQ.FT. 32000
3 OPEN AREA SQ.FT. 11000

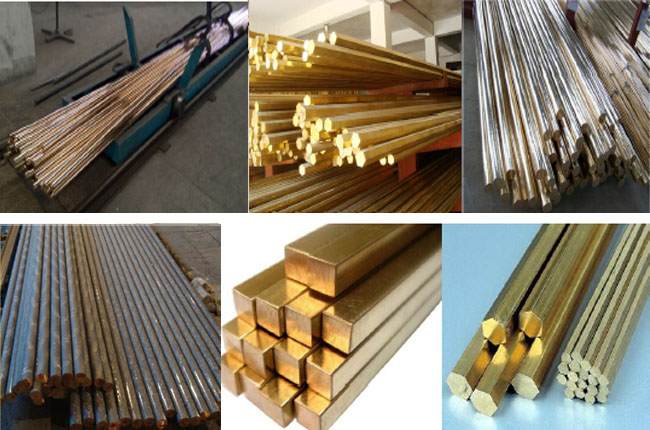

BRASS EXTRUSION PLAN MACHINERY

Sr. No. Machine Type Qty
1 FOUNDRY - 1 TON PER HOUR - PIONEER ONE PORT 1
2 FOUNDRY - 500 KGS PER HOUR- INDO POWER TWO PORT 1
3 MOULD FOR BRASS BILLET 8
4 BILLET CUTTER 1
5 BILLET HEATER FOR TEMPRETURE 1
6 EXTRUSION PRESS - 425 TON 1
7 ROD PONTING MACHINE 3
8 ROD DRAW BENCH MACHINE 5
9 ROD STRATNING MACHINE 6
10 ROD STRATNING ROLLING MACHINE 4
11 ROD CUTTER MACHINE 6
12 BRASS COIL DRAW MACHINEE 3
13 BUTT WELDING MACHINE 2
14 COIL STRATNING MACHINE 3
15 COIL ANALING FOUNDRY 1
16 COOLING TOWER 4
17 DIE POLISING MACHINE 1
BRASS ROD INSPECTION LAB.
18 SPECTRO METER 1
19 HARDNESS TESTER 1
20 TENSILE TESTER 1
21 ELONGATION TESTER 1
22 SCRAP RADIATION DETECTOR MACHINE 1
23 DIGITAL MICRO METER 5
24 VARNIER CALIPER - MITUTOYO 6
25 ROD VISUAL CHECKING GLASS 1

METAL PARTS & SHEET CUTTING MACHINERY

Sr. No. Machine Type Qty
1 VMC MACHINE 2

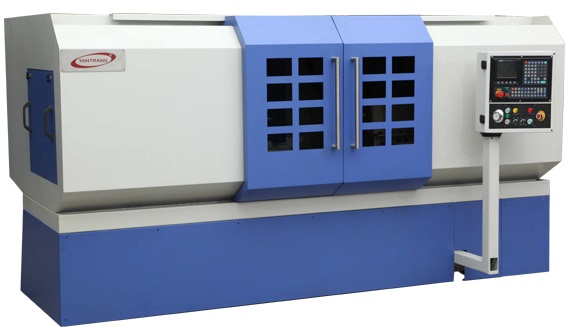

2 CNC MACHINE 21
3 SPM MACHINE ( SPECIAL PURPOSE) 60
4 SLIDING HEAD MACHINE (TORNOS) 8
5 25 mm Trob Machine 10
6 38 mm Trob Machine ( SPECIAL PURPOSE) 2
7 19 mm Trob Machine 40
8 13 mm Trob Machine 105
9 6 mm Trob Machine 8
10 Auto Thread Machine (SPECIAL PURPOSE) 26
11 Chemfering Machine 8
12 Milling Machine 4
13 Milling Machine SPM 3
14 Power Press - 3 Ton 10
15 Power Press - 5 Ton 8
16 Power Press - 10 Ton 3
17 Forging Press - 150 Ton 1
18 Forging Press - 100 Ton 2
19 Forging Press - 50 Ton 1
INSPECTION LAB.
20 PROFILE PROJECTOR WITH TOUCH PROBE 1
21 DIGITAL MAGNIFYING MICROSCOPE 2
22 MAGNIFYING LENS 3
23 VIDEO MEASUREMENT/ALTERNATE SYSTEM (AUTOMATIC SYSTEM) 1
24 DIGITAL MICRO METER 5
25 VARNIER CALIPER - MITUTOYO 25
26 RING GAUGE, PLUG GAUGE, PIN GAUGE, (GO/NO GO) 150

MACHINERY AND EQUIPMENT LIST FOR PLASTIC COMPONENTS

Sr. No. Machine Name Qty
1 PLASTIC INJECTION MOULDING MACHINE - HAITIAN TAIWAN - CAPACITY 250 GM 5
2 PLASTIC INJECTION MOULDING MACHINE - HAITIAN TAIWAN - CAPACITY 200 GM 2
3 PLASTIC INJECTION MOULDING MACHINE - HAITIAN TAIWAN - CAPACITY 100 GM 3
4 PLASTIC CRUSER MACHINE 3
INSPECTION EQUIPMENTS
5 PROFILE PROJECTOR- WITH TOUCH SPOBE 1
6 PLUG GAUGE - STANDARD 15
7 THREAD RING GAUGEE 20
8 VERNIER CALIPER - MITUTOYO 5
9 PIN GAUGE - STANDARD 10
10 MAGNIFYING LENS 1
11 DIGITAL MAGNIFYING MICROSCOPE 1
12 HEIGHT GAUGE 2
DIE TOOLS
13 MOULD DIE BUSH 4
14 MOULD DIE RING 2
15 MOULD DIE CAP 2
16 MOULD DIE SPINDLE GUIDE 2
17 MOULD DIE BIG CAP 3
18 MOULD DIE THREAD NUT 2
19 MOULD DIE FILTER 2
20 MOULD DIE KNOB PLASTIC WITH BRASS MOULDING 5
21 MMOULD DIE SEFTY CAP 1
22 MOULD DIE THREAD CAP 2

MACHINERY AND EQUIPMENT LIST FOR RUBBER COMPONENTS

Sr. No. Machine Name Qty
1 RUBBER HORIZENTAL INJECTION MOULDING MACHINE WITH MOLD - DESMA- GERMANY -ALPHA -300H 1
2 VACCUAM COMPRESION MACHINE - TUNGYU TAIWAN -CAPACITY 200 TON - TYC-V-14-3RT-2-S-PCS 1
3 RUBBER MIXING MILL - INDIAN EXPELLER SIZE : 12"X30" 1
4 DISPERSION KNEADER MACHINE - INDIAN EXPELLER- CAPACITY 15 LITTER 1
5 RUBBER MOULDING HYDRAULIC PRESS -CAPACITY 1 TON 6
6 ROTARY SCREW COMPRESSOR MACHINE - KAESER CAPACITY 8 BAR 1
LAB. EQUIPMENTS
7 MUFFLE FURNACE 1
8 OVEN 1
9 MOONEY VISCOMETER 1
10 OSCILLATING DISC RHEOMETER 1
11 TENSILE TESTING MACHINE 1
12 VIDEO MEASUREMENT/ALTERNATE SYSTEM (AUTOMATIC SYSTEM) 1
13 IRHD -HARDNESS TESTER 1
14 SPECIFIC GRAVITY BALANCEE 1
15 PROFILE PROJECTOR WITH TOUCH PROBE 1
16 COMPERESION SET 1
17 MAGNIFYING LENS 1
18 DIGITAL MELTING POINT APPARATUS 1
19 TEMP & HUMIDITY 4
DIE TOOLS
20 O-RING ID 432 CAVITY DIE 2
21 O-RING ID 522 CAVITY DIE 3
22 WASHER - 100 CAVITY DIE 1
23 DIAPHRAGM DIE 2
24 TIGHT JOINT DIE 3
25 RUBBER DISC DIE 1
26 O-RING OPERATING TAP SPINDLE DIE 2
27 O-RING FOR WORKING ROD DIE 3
28 RUBBER GASKET DIE 2
29 JOINT PACKING DIE 3
30 HIGH QUALITY O-RING 2
